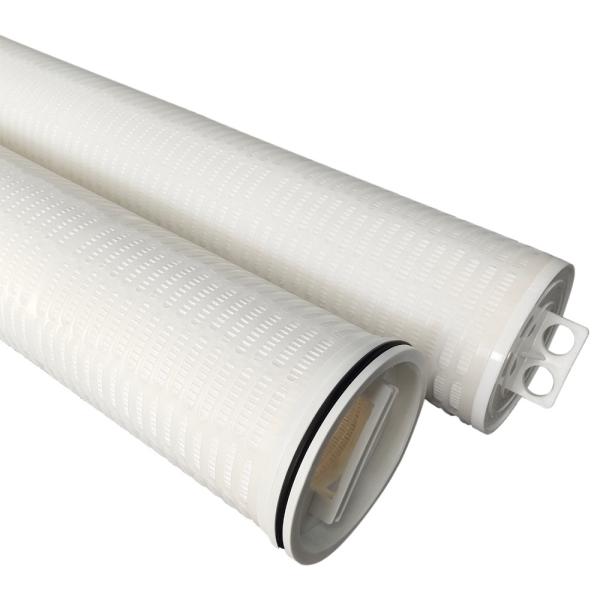

Nominal Rating 10 Micron 40 Inch PP Pleated High Flow Filter
Cartridge
General information
PHF series high flow filter cartridge is made of 6" and 6.5"
diameter, material: PP, Organic fiber and Glass fiber, end caps
material use glassfiber reinforced PP. Bigger diameter provide
bigger filtration area, high flow rate, high dirt holding capacity
and longer use life.
Material Construction
| Filter Media | PP: Deep Pleated PP/Melt PP | FO: Organic Fiber
| GF: Resin Synthetic Glass Fiber |
| Support/Drainage | PP | Organic Fiber | Polyester |
| End Cap Material | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene |
Flow Rate and Filtration Area
Size (Diameter*Length) | Design Flow (m3/hr) | Maximum Flow (m3/hr) | Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
Filter Performance
| Micron | 1um/3um/ 5um/10um/ 15um/ 20um/50um/70um/100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
Application:
①.Pharmaceutical industry: Pre-filtration of drugs, distilled
water, biological products, various antibiotics, etc.
②.Electronics industry: Filtration of industrial water such as
electronics, microelectronics, and semiconductors.
③. Food and beverage: Beer, wine, soft drinks, dairy products,
bottled water, fruit wine, juice, syrup, cooking oil, etc
④. Industrial filtration: Energy, coatings, graphite,
petrochemical, electroplating, mining, machining, industrial water
treatment.
⑤. Water treatment: Drinking water, commercial water treatment,
desalination.
Features and Benefits:
* 40” outer cage is one piece, with high strength can withstand one
adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination
catched;
* Gradient aperture deep polypropylene fiber filter media, aperture
along the fluid motion direction becomes smaller, levels intercept
different sizes particles, which has excellent dirt holding
capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers
save the labor cost;
* Integral support, high strength, high dirt holding capacity, long
service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* FREE sample.
Pullner Production process:
Our production strictly follow these procedures: Pleating → Seam
welding → Assembly → Trimming → Welding → Finished products → Packaging
Performance comparison
Comparison chart of specific filter element number and
corresponding filter footprint.
