Power Plant Iron Remove High-Temperature Water Condensate water Treatment Filter cartridge

General Description

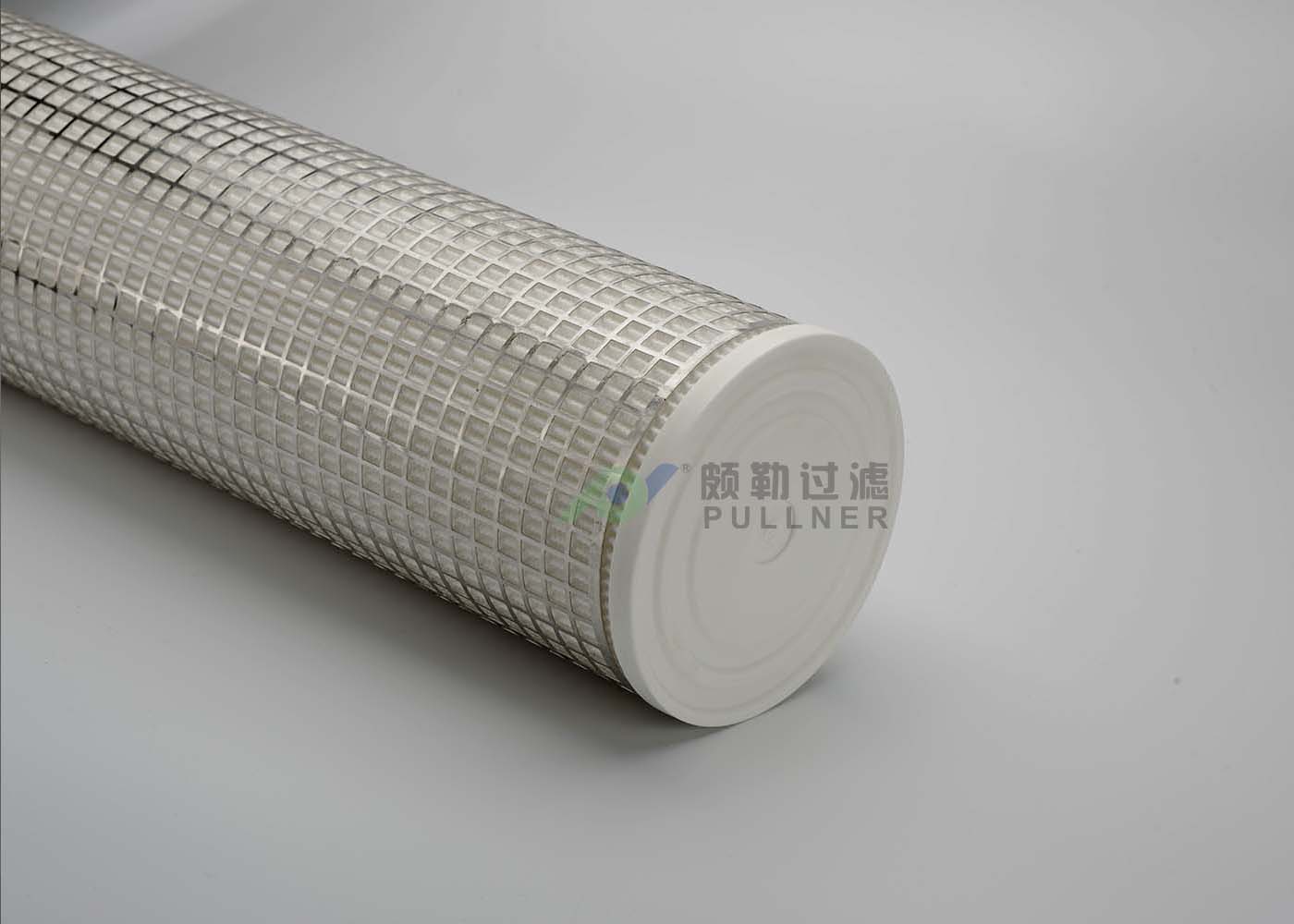

PHFLH Series High Flow Filter Cartridge is made of diameter 6"(152mm), single open end, without inner core, inside to outside flow direction. The filter body is Polyester pleated. End caps and filter layer using thermal melting welding, no any bonding agent, with a wide range of chemical compatibility. High-temperature resistance is widely used in high-temperature conditions. Reduce chemistry hold by up to 50%, Help elimate contamination-related boiler tube failures, have superior flow characteristics for a smaller footprint and lower capital costs.

High flow filter cartridge controls metal and silica solid contaminaiton in condensate water to reduce or elimnate boiler tube failures, and drastically chemical holds during start-up.

The filter housing are multi-filters, code or non code stamped, and can be applied to a wide range of flow rates, whether on startup or in continuous mode. Their design makes the element easy to service, yet the element sealing mechanism allows replacement with maximum filtration integrity.

Dimensions(nominal)

Material of Construction:

Filter Performance

Application:

General Purpose: RO Pre-filtration, all kinds of process water purification

Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;

Food and Beverage: Process water;

Petrochemical: Various solvents, chilled water, brine filtration

Power Plant: supplementary water, condensate water, coolant

Product Features:

* Single cartridge could achieve flow rate 110m³/h

* Special material suitable for high temperature conditions

* Stainless steel outer cage ensure high strength

* Filtration systems are 50% smaller than typical size system

* Inside to outside flow direction keeps all of the contamination catched.

Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

Our Main products:

Membrane pleated filter cartridge, High flow filter cartridge, Condensate polishing pleated filter element, Condensate polishing string wound filter element, Membrane wound filter cartridge, Melt blown filters, Metal wedge wire filter, Metal sintered mesh filters, Sintered fiber felt filter, and power sintered filters; all kinds oil and gas filters.

Production Plant:

We have 10,000 square meters of 100,000-level Clean Room, and more than 10 production lines for various precision filters cartridge. Strict quality control of products, in accordance with international certification standards, At the same time, it is equipped with a well-structured high-level technical R&D and verification team, provide quality products for customers.

Main applications:

Biopharmaceutical, food and beverage, microelectronics, fine chemicals, water treatment, laboratory and other fields; covering LCD panels, semiconductor chips, high-purity chemicals, APIs, water reuse, condensate filtration, water reuse etc.

Pullner laboratory：

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.

Pullner Packaging and Shipping:
