Backwashing Filter Element Iron Remove Used In Power Plant String Wound filter cartridge

Application:

RO pre-filtration, desalination pretreatment;

Power plant condensation water filtration;

Paints, coatings, petrochemical, refining;

Microelectronics, films, fibers, resins.

General Description

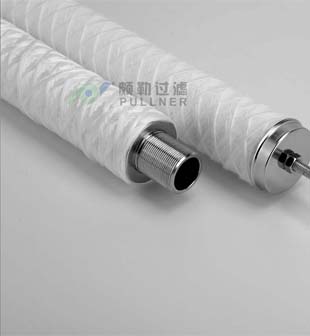

PHFX Series String Wound Filter Cartridge is a depth filtration type, with different precision and end connections can meet different conditions. Effectively remove suspended solids in the fluid, particulates, rust and other debris, widely used for iron removal in condensate water treatment.

Performance Specifications

Dimensions

Material of Construction

Filter Performance

Features and Benefits:

High Surface area;

Stainless steel core and end fittings;

Customized installation supports on request;

Designed for iron removal in condensate water;

Suitable for use with resins pre-coating techniques;

Up to 70” length, high filtration area, for high dirt holding capacity;

Glass fiber and Cotton suitable for high temperature applications.

Simple structure, no acid consumption and waste acid regeneration.

About us

Shanghai Pullner Filtration Technology Co.,Ltd located in Songjiang district Shanghai. We are committed to the field of filtration process technology development, technology consulting, services and filtration equipment, filters and filter R&D production and sales. We have 100,000 level clean production workshop, equipped with modern physics and chemistry laboratories and a sterile lab. Our company has more than 30 sets of production and welding equipment, more than 10 sets of advanced testing equipment, a highly educated technical development and verification team, to ensure high-quality products.

FILTER CORE SELECTION GUIDE

• Polypropylene: economical core of choice for most applications in water and corrosives to 200ºF.
• Tin Plated Steel: General purpose metal core for oils, solvents,paints, and other non-FDA applications. For use to 400ºF.
• 304 Stainless Steel: For high temperature applications on diluted acids and moderately corrosive fluids. For use to 750ºF.
• 316 Stainless Steel: For high temperature applications on strong acids and highly corrosive fluids. For use to 750ºF.
• Glass-filled nylon for strong acids and highly corrosive fluids when polypropylene is not compatible.

Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

Our Main products:

Membrane pleated filter cartridge, High flow filter cartridge, Condensate polishing pleated filter element, Condensate polishing string wound filter element, Membrane wound filter cartridge, Melt blown filters, Metal wedge wire filter, Metal sintered mesh filters, Sintered fiber felt filter, and power sintered filters; all kinds oil and gas filters.

Production Plant:

We have 10,000 square meters of 100,000-level Clean Room, and more than 10 production lines for various precision filters cartridge. Strict quality control of products, in accordance with international certification standards, At the same time, it is equipped with a well-structured high-level technical R&D and verification team, provide quality products for customers.

Main applications:

Biopharmaceutical, food and beverage, microelectronics, fine chemicals, water treatment, laboratory and other fields; covering LCD panels, semiconductor chips, high-purity chemicals, APIs, water reuse, condensate filtration, water reuse etc.

Pullner laboratory:

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.

Pullner Packaging and Shipping:
