1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter

    Buy cheap 1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter from wholesalers

    Buy cheap 1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter from wholesalers
    • Buy cheap 1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter from wholesalers
    • Buy cheap 1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter from wholesalers
    • Buy cheap 1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter from wholesalers

    1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter

    Ask Lasest Price
    Brand Name : Pullner
    Model Number : PHFZ
    Certification : ISO 9001
    Price : USD+ 55-200 +Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150 + pieces +per + day
    Delivery Time : 2 week
    • Product Details
    • Company Profile

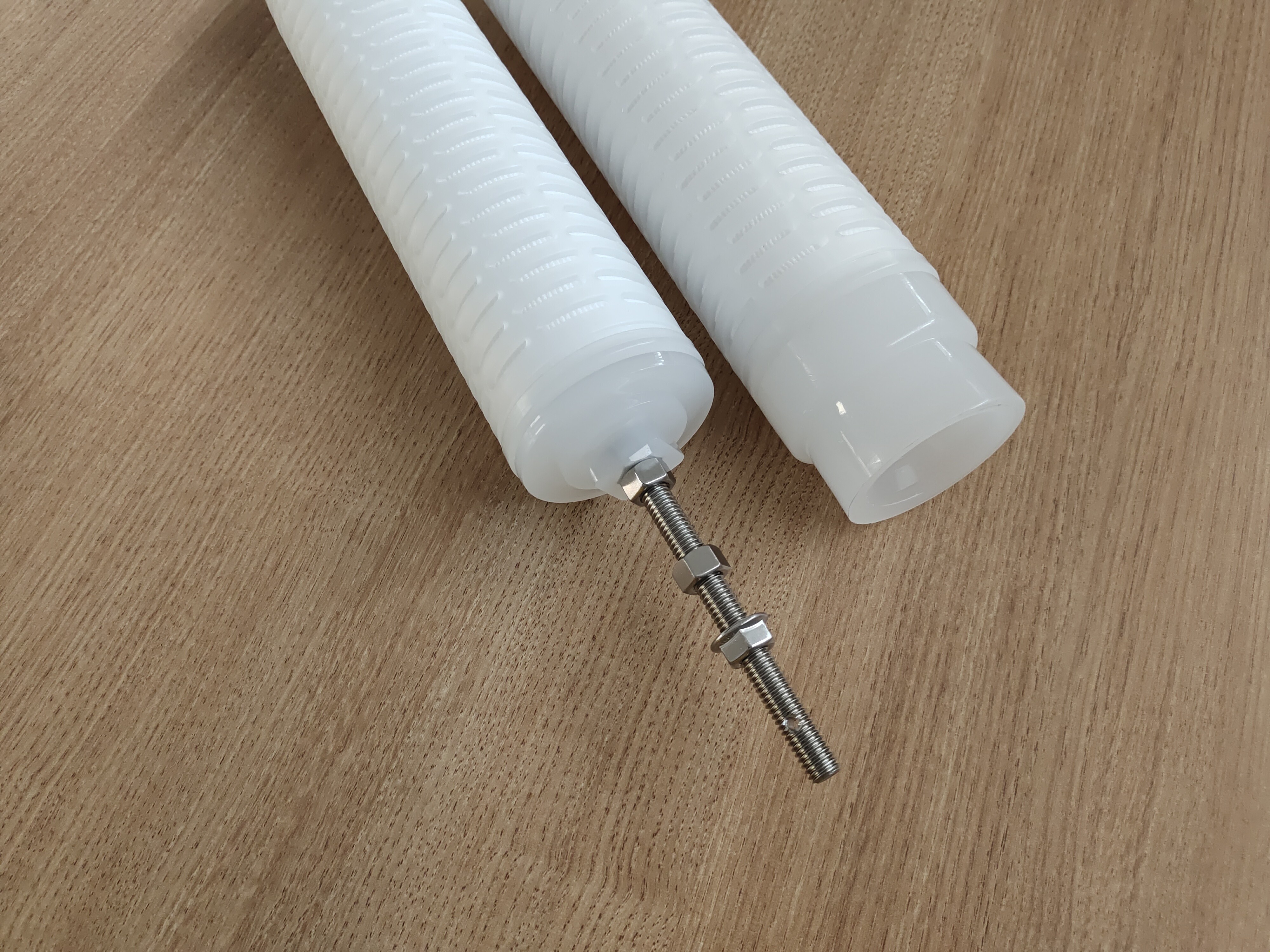

    1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter

    Ordering Information

    PHFZ PP 0500 70 III Z2 W

    SeriesMediaMicronLengthStructureConnection ThreadEnd Tread
    PHFZPP=Polypropylene

    0100=1.0μm

    0400=4.0μm

    1000=10μm

    60=60"

    70=70"

    I=7Part(φ69)

    II=4+3(φ65)

    III=3+1(φ69)

    Z1=1 1/2"-12

    Z2=M33×1.5

    W1=M8

    W2=M10

    W3=M6

    W4=3/8


    Material Constructions

    Filter MediaPolypropylene (PP)
    Cage/Core/End capPolypropylene (PP)
    Accessories (nut, screw)SS304

    Performance

    Maximum Operating Temperature85℃
    Maximum Operating Differential Pressure3.0bar/65℃
    Filtration Area6.5㎡
    Flow Rate

    3.5-4.5m3/h(Design)

    3.9m3/h(Recommend)

    Inlet water quality<2000ppb

    Backwash water or gas: Under the pressure of 1.36-2.1bar, the backwash water of each filter cartridge is 0.45-0.65m3/h, backwash gas 3.4-5m3/h, can achieve the ideal effect.

    600MW supercritical units and 1000MW ultra-supercritical units, respectively recommended use 4μm and 1μm 70" filter cartridge, when debugging recommend 10μm filter cartridge for start-up.




    1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter1um Melt Blown Polypropylene Pleated Backwash Cartridge Filter
