Brand Name : | PULLNER |
Model Number : | PHFK |
Certification : | FDA |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability : | 1200pcs per week |
Delivery Time : | 7days |
MOQ : | 1 piece |

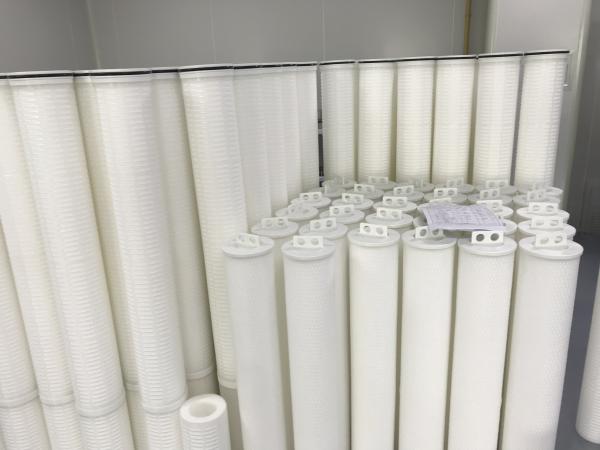

High Flow 0.5-100Micron Filter Cartridge Economical Style
General Description
PHFK series high flow filter cartridge is made of diameter
6"(152mm) and PP pleated design, with high-strength pp center core,
outside to inside flow direction. All connection use thermal
welding. Outer cage have two types: integral pp cage and polyester
mesh.
Performance Specifications:
Dimensions(nominal):
OD | 6" (152mm) |
Length | 40" (1016mm) |
Material of Construction:
Model | Filter Medium | Support/Drainage | End Caps | Seals Material |
PP | Deep Pleated PP | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR, Silicone, EPDM, Viton |
PET | Pleated Polyester | Polyester | Glass Fiber Reinforced Polypropylene |
Filter Performance
Micron | 1um, 5um, 10um, 15um , 20um, 40um, 70um, 100um |
Max. operating temperature | PP type: 82℃ |
PET type: 121℃ | |
Max. operating differential pressure | PP type: 3.44bar@82℃ |
PET type: 3.44bar@121℃ | |
Suggestion pressure for filter replacement | 2.5Bar@20℃ |
Max. flow rate | 70m3/h |
Filtration direction | Outside to inside |
![]() |
