High Flow Filter Cartridge 20 Inch 40 Inch 60 Inch Hi Flow Water
Filter Cartridge China Factory

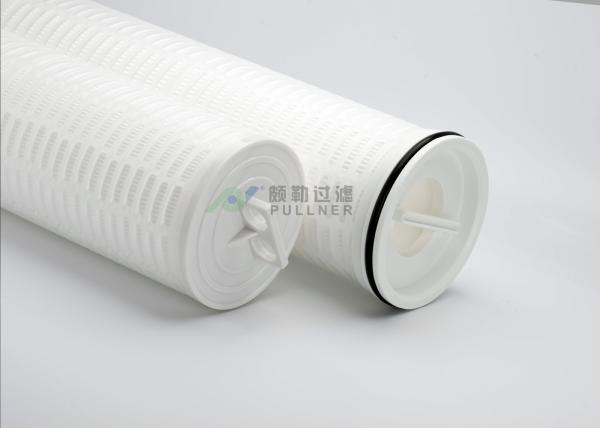

PHFL High Flow Filter Cartridge series high flow filter cartridge
is made of diameter 6"(152mm), single open end, without inner core,
pleated type with inside to outside flow direction. All connection
use thermal welding. Large diameter, big filtration area provide
high flow rate, highly efficient particle filtration in RO
pre-filtration system. Widely used in seawater desalination and
power plant condensate polishing water RO pre-filtration.
High Flow Filter Cartridge Performance Specifications
Dimensions(nominal)
| OD | 6” (152mm) |
| Length | 20"(508mm), 40"(1016mm), 60"(1524mm) |
Material of Construction:
| Model | Filter Media | Support/Drainage | End Caps | Seals Material |
| PP | Pleated depth | Polypropylene | Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton
|
| PP | Melt blown | / | Glass Fiber Reinforced Polypropylene |
Filter Performance
| Micron | 1μm, 5μm, 10μm, 15μm , 20μm, 40μm, 70μm |
| Maximum operating temperature: | 82℃ |
Maximum operating differential pressure (Inside to outside flow direction) | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 40": 70m3/h |
| 60": 110m3/h |
| Filtration direction | Inside to outside |
High Flow Filter Cartridge Products Details:
High Flow Filter Cartridge Application:
1.Pharmaceutical industry: Pre-filtration of drugs, distilled
water, biological products, various antibiotics, etc.
2.Electronics industry: Filtration of industrial water such as
electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products,
bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite,
petrochemical, electroplating, mining, machining, industrial water
treatment.
5. Water treatment: Drinking water, commercial water treatment,
desalination.
High Flow Filter Cartridge Features and Benefits:
* 40” outer cage is one piece, with high strength can withstand one
adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination
catched;
* Gradient aperture deep polypropylene fiber filter media, aperture
along the fluid motion direction becomes smaller, levels intercept
different sizes particles, which has excellent dirt holding
capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers
save the labor cost;
* Integral support, high strength, high dirt holding capacity, long
service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* FREE sample.
High Flow Filter Cartridge Operating Demonstration
It easy to operating, all you need to do just to put the filter in
the strainer.
High Flow Filter Cartridge Production process:
Our production strictly follow these procedures: Pleating → Seam
welding → Assembly → Trimming → Welding → Finished products → Packaging
Clean Room:
In the purification workshop, workers need to wear purification
clothes, purification shoes, masks, hats and gloves. The
purification workshop has high requirements on the production
environment, which can ensure the cleanliness and safety of the
products, and can meet the filtration requirements of food and
beverage, biopharmaceutical and other industries.
Pullner laboratory:
It is equipped with varieties of test facilities: Aperture
distribution instrument, water single-pass test bench, scanning
electro microscope, bacterial challenge lab, online particle
detector, diaphragm test bench, air permeability tester, filter
cartridge integrity tester, test trolley for simulating field
conditions, etc. With several test experts, quickly provide
customers varies conditions solutions.
Global Customers
Customers Feedback
Pullner Exhibitions:
We have participated in professional exhibitions in the filtration
industry all the year round. At the exhibition, we not only met new
customers and their product needs, but also gained more
understanding of the latest filtration technology and products. For
us to improve existing products and develop new Products provide
more professional information.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter
cartridges, housings and filtration systems. We provide you the
total filtration solutions with our many years experience in the
industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal
orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or
drawings. Our mission is make customer idea on the products and
provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be
customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is
warmly welcomed. If you have a trial order, please feel free to
contact us so that we can make some shipping recommendation for you
to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our
goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15
days for bulk production.
8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.
10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will
recommend you suitable products for your selection also give some
valuable suggestion for your selection.
