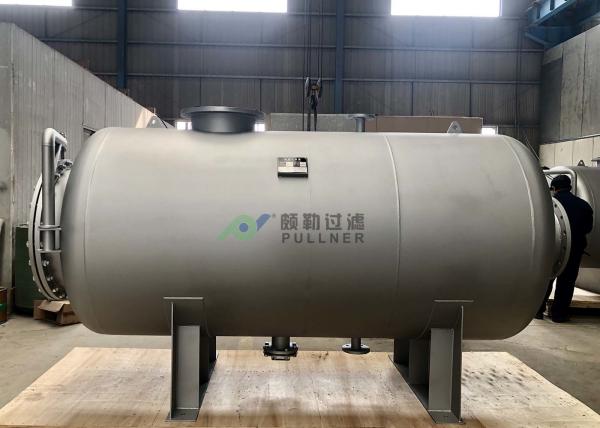

304 316L Stainless Steel High Flow Filter Housing Customized Size Filter Tank

General Description

PULLNER FILTRATION stainless steel filter housing offers wide range of flow capacities and contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Technical Parameters

Filter material:SS304,316L,carbon steel
Filter cartridge size: diameter 6"(152mm)
height:40"(1016mm) or 60" (1524mm)
Seal type: O Type Ring
Surface treatment: Matt
Filter accuracy:1,3,5,10,20,30,50,70,100um

Features

1. Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.

2. Working pressure 8kg/0.8Mpa is supported.

3. Use the tap water pressure to provide power, no power consumption.

4. This is suitable for using in the water master switch, for the pre filtration system and RO system protection.

5. Resistance to strong acid and alkali.

6. Low cost, it fits different kind of filter elements.

Applications

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.

Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

Our Main products:

Membrane pleated filter cartridge, High flow filter cartridge, Condensate polishing pleated filter element, Condensate polishing string wound filter element, Membrane wound filter cartridge, Melt blown filters, Metal wedge wire filter, Metal sintered mesh filters, Sintered fiber felt filter, and power sintered filters; all kinds oil and gas filters.

Production Plant:

We have 10,000 square meters of 100,000-level Clean Room, and more than 10 production lines for various precision filters cartridge. Strict quality control of products, in accordance with international certification standards, At the same time, it is equipped with a well-structured high-level technical R&D and verification team, provide quality products for customers.

Main applications:

Biopharmaceutical, food and beverage, microelectronics, fine chemicals, water treatment, laboratory and other fields; covering LCD panels, semiconductor chips, high-purity chemicals, APIs, water reuse, condensate filtration, water reuse etc.

Pullner laboratory：

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.
