Brand Name : | PULLNER |
Model Number : | Nylon |
Certification : | FDA |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 500pcs per week |
Delivery Time : | 5-8 days |

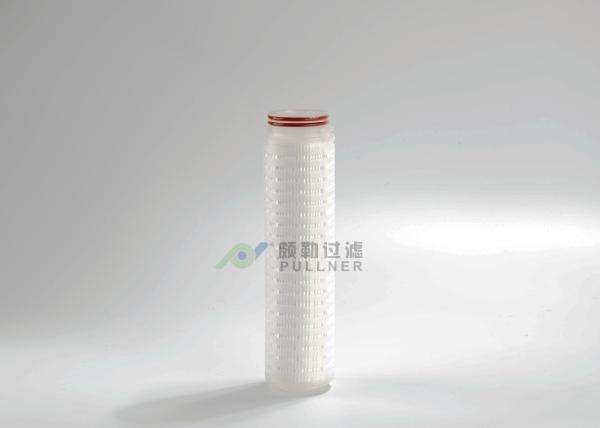

High Quality 10" 0.1 Micron Nylon Water Pleated Filter Cartridge for Food and Beverage
General description
Using imported N6/N66 membrane filter media, other structural materials are polypropylene, through fusion welding molding. Hydrophilic membrane, easy wetting; low extractables, will not pollute the fluid; suitable alkaline liquid filtration.
Applications
Pharmaceutical industry: various solvent and liquid filtration
Food and beverage industry: pure water, mineral water, juice, beer and alcohol filtration
Electronics industry: terminal filtration of high purity water and distilled water
Features
Possessing better performance of high temperature-resistance, acid and base resistance
Hydrophilic membrane with high flow
Non-fiber releasing according to pharmaceutics and food industry requirements
100% integrity tested
Flushed with ultrapure water
Dimensions
Outer diameter | 2.7" (69mm) |
Length | 10", 20", 30", 40" |
Material of Construction
Filter Medium | Nylon |
Support/Drainage | PP |
Center core/Outer Cage/End Caps | PP |
Seals Material | NBR, Silicone, EPDM, Viton, Teflon |
Filter Performance
Removal rating | 0.1um, 022um, 0.45um |
Max. operating temperature | 60℃ |
Max. operating differential pressure | 4.2 Bar @ 25℃ |
Max. operating differential pressure (Reverse direction) | 2.1 Bar @ 25℃ |
Max. temperature sterilization | 30 times, 30 minutes at 121℃ |
![]() |
