General Description

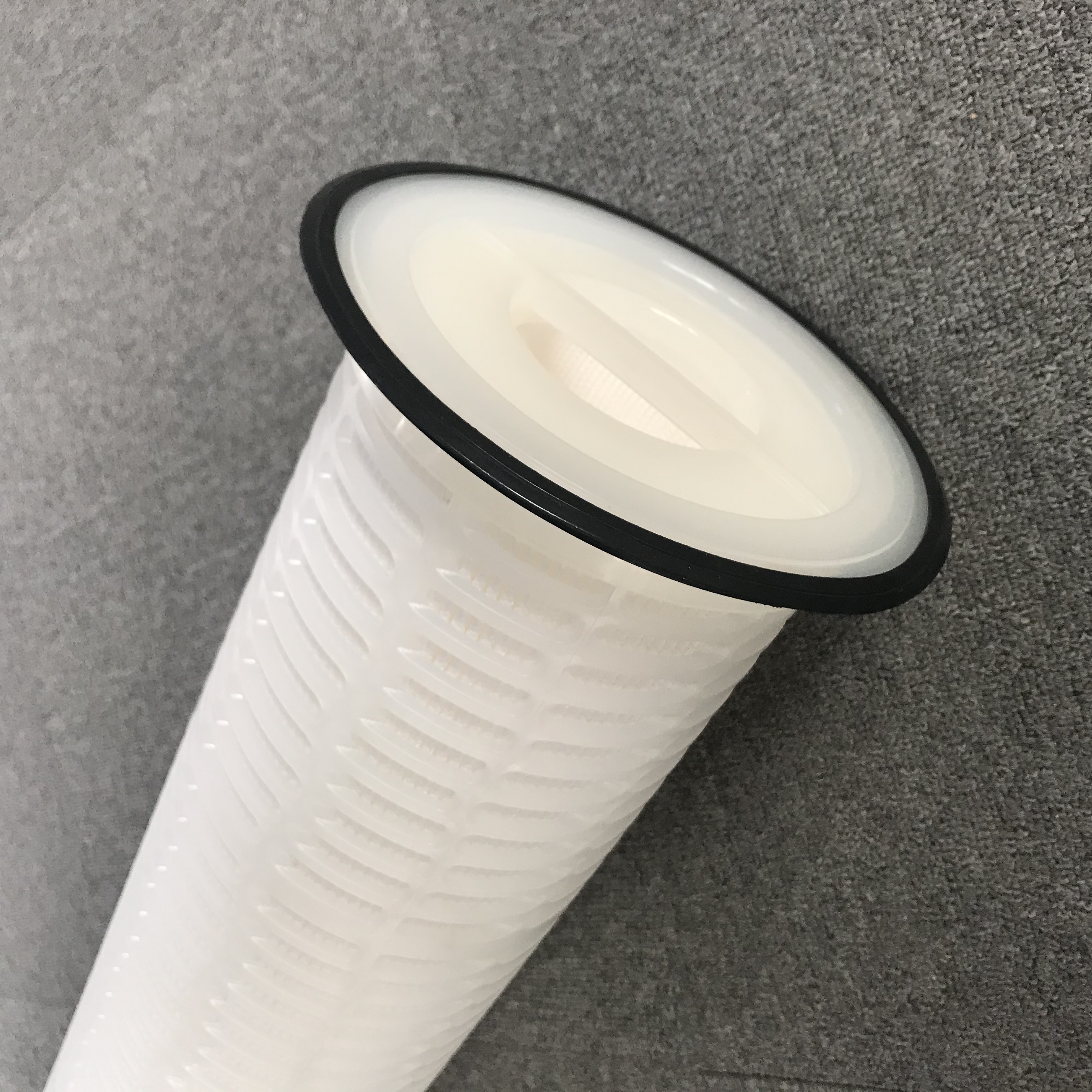

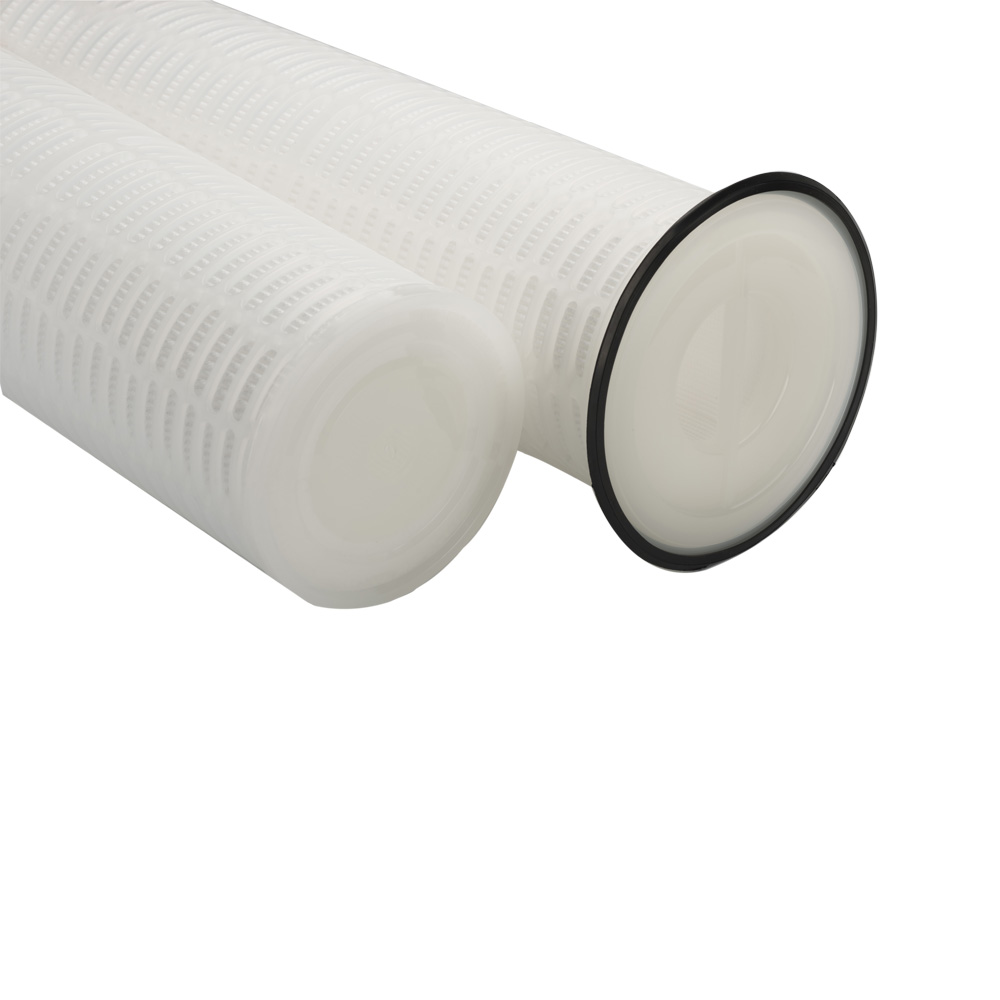

PHBG Series High Flow Filter Cartridge is made of diameter
6"(152mm), single open end, port size 180mm, without inner core,
inside to outside flow direction. All connection use thermal
welding, no any bonding agent, wide range of chemical
compatibility, can be applied to various fields. It’s designed to
replace the filter bag.
Performance Specifications
Dimensions(nominal)
| OD | 6" (152.4mm) |
| Port size | 180mm |
| Length | 10”, 20”, 30”, 40” (Customized on request) |
Material of Construction
| Model | Filter Media | Support/Drainage | End Caps | Seals Material |
| PP | Pleated Depth Polypropylene | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR,Silicone, EPDM,Viton |
| GF | Glass Fiber/Polyester | Polyester | Glass Fiber Reinforced Polypropylene | NBR,Silicone, EPDM,Viton |
Filter Performance
| Micron | 1m, 5μm, 10μm, 20μm, 50μm, 100μm, 150μm, 200μm |
| Max. operating temperature | Pleated PP: 82℃ Pleated glass fiber: 121℃ |
Max. operating differential pressure (Inside to outside flow direction) | Pleated pp: 3.44bar@82℃ Pleated glass fiber: 3.44bar@121℃ |
| Suggestion pressure for filter replacement | 2.5 Bar @ 20℃ |
Application:
General purpose: RO Pre-filtration, Seawater desalination RO
pre-treatment;
Power generation: Condensate re-circulation, Hot water recovery,
Supplementary water, Coolant;
Food and Beverage: Bottled water, High Fructose, Edible oil, Soft
drinks, and milk, Potable water;
Petrochemical: Various solvents, Ink, plating fluids, Paints and
coatings, Refineries
Product Features
Outer cage is one piece, have high strength;
Inside to outside flow direction keeps all the contamination
catched;
High dirt holding capacity, long service life;
Less cartridge change out help customers save the labor cost;
Easy install and change out;
Range chemical compatibility for different applications;
Gradient aperture ensure excellent dirt holding capacity and low
flow resistance.
Products Details
Pullner Production process:
Our production strictly follow these procedures: Pleating → Seam
welding → Assembly → Trimming → Welding → Finished products → Packaging
Clean Room:
In the purification workshop, workers need to wear purification
clothes, purification shoes, masks, hats and gloves. The
purification workshop has high requirements on the production
environment, which can ensure the cleanliness and safety of the
products, and can meet the filtration requirements of food and
beverage, biopharmaceutical and other industries.
Pullner laboratory:
It is equipped with varieties of test facilities: Aperture
distribution instrument, water single-pass test bench, scanning
electro microscope, bacterial challenge lab, online particle
detector, diaphragm test bench, air permeability tester, filter
cartridge integrity tester, test trolley for simulating field
conditions, etc. With several test experts, quickly provide
customers varies conditions solutions.
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and
sales of micro membrane filtration equipment and filtration
systems.
Pullner Certificates:
Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates.
