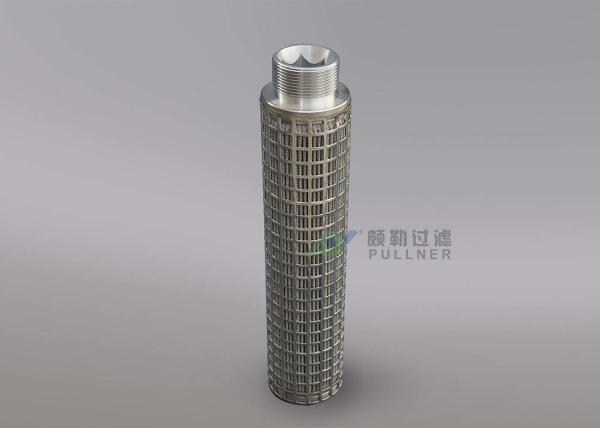

    316L 304 Stainless Steel Filter Pleated Filter High Temperature 120℃ OEM

    Ask Lasest Price
    Brand Name : PULLNER
    Model Number : PHSF
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 20-35 days
    MOQ : 1 piece
    • Product Details
    • Company Profile

    316L 304 Stainless Steel Filter Pleated Filter High Temperature 120℃ OEM

    316L 304 Stainless Steel Filter Pleated Filter High Temperature 120℃ Customized


    General Description

    PHSF series stainless steel pleated filter cartridge is made of stainless steel fiber felt by pleating wave shape, with big filtration area, high dirt holding capacity, high corrosion resistance, high pressure, high temperature. Customized on request.


    Features and Benefits

    1. All stainless steel construction

    2. Depth porous material

    3. Stainless steel design

    4. High dirt holding, long usage life

    5. Corrosion resistance, high pressure, high temperature

    6. All-welded construction, no media loss.

    Material of construction

    Core/Outer Guard

    SUS 304/316L Stainless steel porous plate

    Filter Medium

    Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh

    Filter net: Required accuracy of stainless steel wire mesh

    Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh

    End caps

    SUS 304/316L Stainless steel


    Operating Conditions

    Max. operating differential pressure

    5.0bar

    Max. operating temperature

    480℃


    Material Properties

    No.Liquid Accuracy(um)Gas Accuracy (um)

    Porosity

    (%)

    Average Air-permeability (L/dm2.min)

    Liquid Flow Rate

    (m3/h)

    151675.034
    2102737.8108
    3153757.8180
    420108213265
    525167819325
    6302078--450
    7403075--620
    8604585--1350

    Remarks: Bubble pressure test compliance with ISO 4003

    Air permeability test compliance with ISO 4022, air pressure of the average permeability is 200Pa.

    Test Conditions: Liquid Viscosity=1 CP﹒S, the test filter OD is 65mm, 10inches length, under 1.0bar pressure


    Products Specifications

    Standard OD

    Standard Length

    Filter area

    65mm

    Customized on request

    5in.(127mm)

    0.096m2

    10in.(254mm)

    0.19 m2

    20in.(508mm)

    0.38 m2

    30in.(762mm)

    0.57 m2

    40in.(1016mm)

    0.76 m2
