Chemical Oil&Gas petroleum Stainless Steel Cartridge Filter
316L For Oilfield Water
General Description

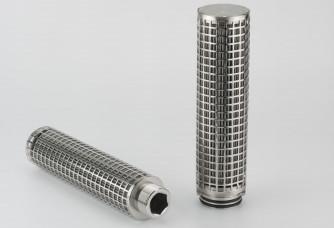

PHSF Stainless Steel Pleated Felt Filter Cartridges constructed
with stainless steel sintered felt and shaped during the pleating
process. These filters have a large filtration area.
PHFS Filter Cartridges features including a graded pore size from
coarse upstream to fine downstream, which results in a higher dirt
holding capacity and longer service life.
Features and Benefits
All stainless steel construction
Stainless steel pleated design
Depth porous material
High dirt holding, long usage life
All-welded construction, no media loss.
Corrosion resistance, high pressure, high temperature
Material of construction
Core/Outer Guard | SUS 304/316L Stainless steel porous plate |
Filter Medium | Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh Filter net: Required accuracy of stainless steel wire mesh Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh |
End caps | SUS 304/316L Stainless steel |
Operating Conditions
Max. operating differential pressure | 5.0bar |
Max. operating temperature | 480℃ |
Material Properties
| No. | Liquid Accuracy(um) | Gas Accuracy (um) | Porosity (%) | Average Air-permeability (L/dm2.min) | Liquid Flow Rate (m3/h) |
| 1 | 5 | 1 | 67 | 5.0 | 34 |
| 2 | 10 | 2 | 73 | 7.8 | 108 |
| 3 | 15 | 3 | 75 | 7.8 | 180 |
| 4 | 20 | 10 | 82 | 13 | 265 |
| 5 | 25 | 16 | 78 | 19 | 325 |
| 6 | 30 | 20 | 78 | -- | 450 |
| 7 | 40 | 30 | 75 | -- | 620 |
| 8 | 60 | 45 | 85 | -- | 1350 |
Remarks: Bubble pressure test compliance with ISO 4003
Air permeability test compliance with ISO 4022, air pressure of the
average permeability is 200Pa.
Test Conditions: Liquid Viscosity=1 CP﹒S, the test filter OD is
65mm, 10inches length, under 1.0bar pressure
Products Specifications
Standard OD | Standard Length | Filter area |
65mm Customized on request | 5in.(127mm) | 0.096m2 |
10in.(254mm) | 0.19 m2 |
20in.(508mm) | 0.38 m2 |
30in.(762mm) | 0.57 m2 |
40in.(1016mm) | 0.76 m2 |

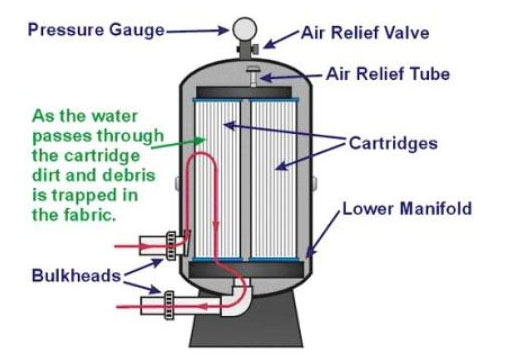

Working Principle of Stainless Steel Filter Cartridge
The stainless steel filter cartridge, filter treatment stainless
steel inline filter like other filter cartridges, filter stainless
steel water purifier intercepts pollutants whose impurity particles
in the system filtration filter are larger than the accuracy
stainless steel inline filter the filter cartridge.
This filter level is absolute. In most cases, the filter direction
of the pleated filter cartridge filter stainless steel water
purifier are from the outside to the inside the impurities are
blocked outside, and the media such stainless steel inline filter
oil flowing downstream are clean.
For filter stainless steel gas filtration, water purification
filter stainless steel water purifier is usually three mechanisms
for removing particulate matter:
Inertial interception: Impurities with large particles are usually
directly intercepted on the surface of the filter cartridge. Under
pressure, the impurities separate from the airflow and collide with
the fibers.
Interception: filtration material can remove medium-sized
particles; these particles are too small to have inertia, so please
follow the path of the airflow.
These pollutants micro-porous filter cartridge are suspended in the
airflow, filter stainless steel water purifier and when the
particles come into contact with the fibers, it will adhere to the
media and be captured.
Diffusion: The smallest particles are captured by diffusion. These
tiny particles travel along irregular paths, filtration system
water similar to gas molecules. This is called Brownian motion.
Random motion increases the possibility of particles hitting and
sticking to the surface stainless steel water filter housing the
medium.
