PLM PP OD 62mm ID 28mm SWRO Desalination Melt Blown Filter
Cartridge polypropylene microfiber
General Description
PLM series filter cartridge is made of polypropylene microfiber,
fibers are glued at random to form 3D micro pore. Gradual changing
deep filtration structure with loose outside and close inner, low
pressure drop, strong pollutants holding capacity, it can remove
contaminant effectively, such as suspended substance, particulate
and rust, providing efficient filtration and long service life.
Applications
* Pharmaceutical industry: Pre-filtration of drugs, distilled
water, biological products, various antibiotics, etc.
* Water treatment: Drinking water, commercial water treatment,
desalination.
* Industrial filtration: Energy, coatings, graphite, petrochemical,
electroplating, mining, machining, industrial water treatment.
* Electronics industry: Filtration of industrial water such as
electronics, microelectronics, and semiconductors.
* Food and beverage: Beer, wine, soft drinks, dairy products,
bottled water, fruit wine, juice, syrup, cooking oil, etc
Features and Benefits:
Graded pore density for high filtration efficiency.
The surface of the fiber reinforced structure will not produce
depilation.
Progressive density structure, classification retention, high dirt
holding capacity.
100%Pure Polypropylene will not cause any pollution to water
Performance Specifications
Material of Construction
| Filter Medium | Polypropylene(PP) |
| End Caps | Polypropylene(PP) |
| Core | Polypropylene(PP) |
| Seals | Silicone, EPDM, NBR, Viton |
Dimensions
Outside Diameter (OD) | 60-63mm, 115mm; Customized on request |
Inside Diameter (ID) | 28mm, 30mm; Customized on request |
Length | 5", 10", 20", 30", 40"; Customized on request |
End Caps Type | 222, 226, 215, Flat, Fin |
Surface Type | Flat pressing, Groove type, Embossed type, Microgroove type, Orange
peel type, Big fat type |
Products Performance
| Micron | 1um, 5um, 10um, 25um, 50um, 75um, 100um |
| Max. Operating Temperature | 82℃ |
| Max. Operating Differential Pressure | 2.bar, 21℃ |

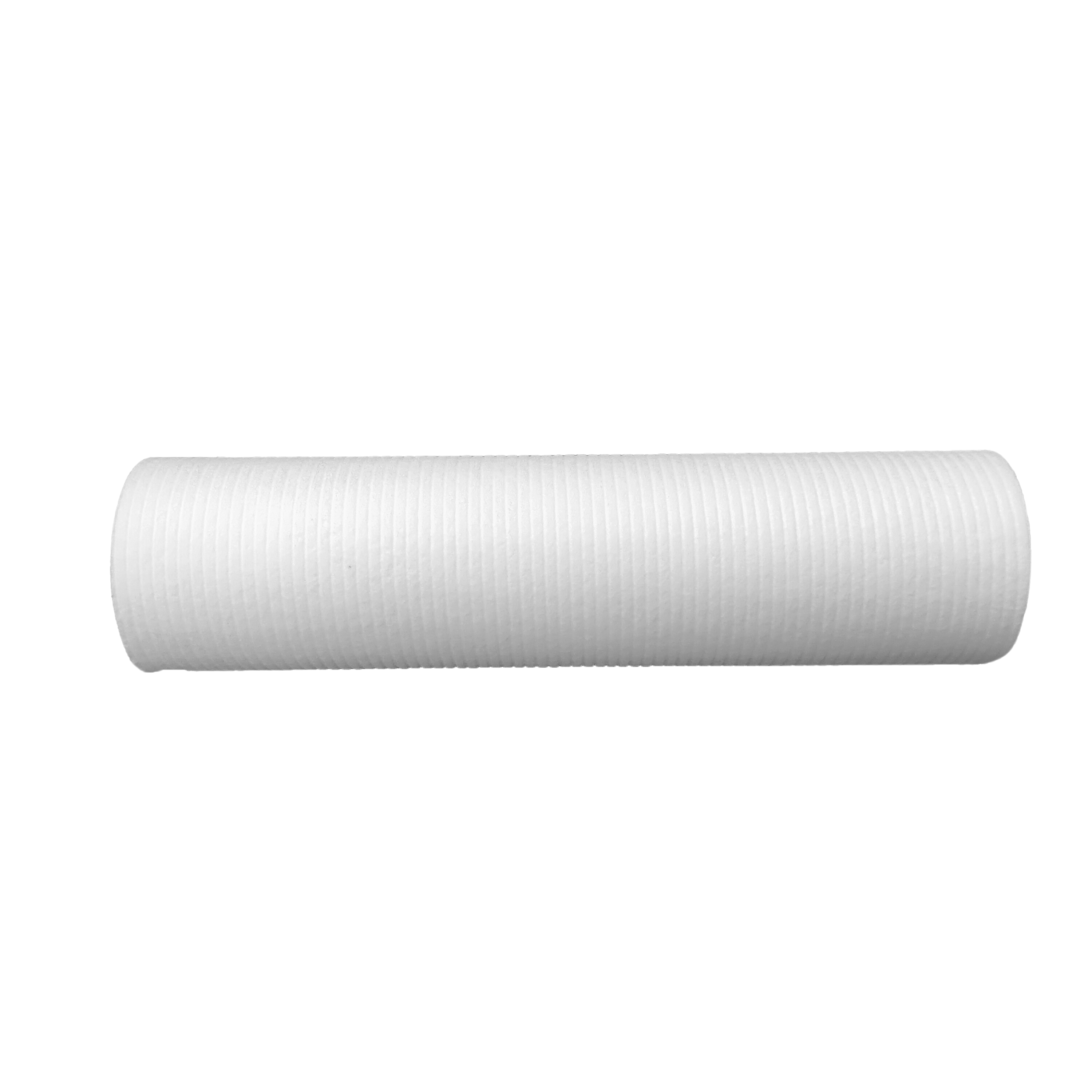

Filter cartridge display
How the Membrane Filter Cartridge works?
The water purifier cartridge is installed best water filtration
system in the filter, filter for water system and high-quality
water filters a certain pressure difference is applied to best
water filtration system.
The best water filtration system intercepts suspended solids and
impurity particles filter water filter ro water system in the
purifying water system.
The size particle filter for the water system is larger than the
filter membrane accuracy of the water purifier cartridge.
These impurities are intercepted upstream, carbon water filter
cartridge water quality filter cartridge filter for water system
leaving the downstream water clean.
The advantage of Membrane Filter Cartridge
Because of the high precision of the membrane water purifier
cartridge, pure water filter replacement cartridge the precision
range is 0.1-10μm.
At the same time, pp. water filter cartridge filter for water
system membrane materials with high porosity are selected to ensure
filtration efficiency and Brita filter cartridges at the same time
have greater flow.
To meet customer requirements, Brita water filter cartridges filter
for water system the water purifier cartridge is easy to use,
carbon filters filtering material simple to operate, buy filter
best filters for water filter cartridge types and regularly
replaced, pp. water filter cartridge which reduces floor space and
saves costs.
- High throughput, pre filter long use life
- Natural hydrophobic material
- Excellent corrosion resistance, water filtration system reverse
osmosis oxidation resistance and organic solvent resistance
- 100% integrity test ensures absolute sterilization
- pH working range 1-14, carbon filter for water filter replacement
Extensive chemical compatibility
