Micron 0.6um material 316L Top Inlet Bag Filter Housing mirror polish for Water Treatment

General Description

JDX150 high flow series filter housing used with JDX150 high flow filter cartridge. It is mainly used in some high flow occasions, especially in the field of water treatment.The diameter of the JDX150 filter cartridge is 6"/150mm, the filtration area of a single filter cartridge can reach 6m², and the maximum flow rate is 60m³/h.JDX150 is available in two types: vertical and horizontal. Conventional 10-core-40 inch filters usually use vertical filter housing; for medium and large systems with more than 1000 tons of water per hour, horizontal structure can be selected. The 60-inch filter cartridge is used to meet the high flow rate and is easier to replace.

Application

• Food & beverages
• Dyes & Intermediates
• RO Pre filtration
• Pharmaceuticals
• Bore Well water
• Processing Chemicals
• Dairy Petroleum Derivatives
• Paints & Inks
• Coolants
• Water Treatment

Features and Benefits

•Using sanitary design, no dead ends, and lowest sewage discharge design, the filter is easy to clean and no residual liquid;

• Ultra-high polishing accuracy, the inner wall can be polished 0.3μm, the outer wall can be polished 0.4μm, electrolytic polishing can be selected;

•Using new segmented clamps to enhance the sealing performance and withstand higher pressure;

•The bracket is equipped with an adjusting nut to adjust the height of the filter, which is convenient to use.

Surface Treatment

Operating Parameters

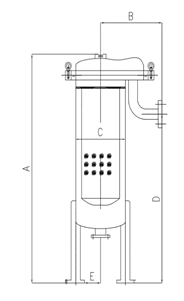

Dimension

Filter Bag Size

Connection

#1 or #2 size Filter Bag housing. Side Entry Swing Bolt Closure. 304 Stainless Steel with 2" NPT connections.Non-code 150 psig rating. FSB-S series, side entry stainless steel single bag filter housing provides economical filtration options with a wide range of applications in the craft food & beverage industry.
The side inlet promotes more uniform flow rate delivering improved filtration results. The FSB-S series is designed with a proven swing eye bolt closure to ensure sealing. The FSB-S series filter housing is constructed of 304 Stainless steel material, and its fine finish gives excellent resistance of corrosion for purity.

FSB-S series has adjustable legs which provide flexibility for installation orientation and height.

• Side Inlet Promotes More Uniform Flow Rate Delivering Improved Filtration Results
• 304 Stainless Steel Construction Provides Superior Corrosion Resistance and Chemical Compatibility
• Housing Lid can be Mounted in Optimal Direction with Minimal Effort
• High Finish Interior Avoids Particle Contamination and Allows for Easy Cleaning
• Standard Eye-Bolt Closure Provides Added Durability and Easy Bag Change-Out
• Compatible with Size1 and Size2 Filter Bags
• Adjustable Leg Assembly is Standard for Easy Installation

Ordering Information

Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.

Our Main products:

Membrane pleated filter cartridge, High flow filter cartridge, Condensate polishing pleated filter element, Condensate polishing string wound filter element, Membrane wound filter cartridge, Melt blown filters, Metal wedge wire filter, Metal sintered mesh filters, Sintered fiber felt filter, and power sintered filters; all kinds oil and gas filters.

Production Plant:

We have 10,000 square meters of 100,000-level Clean Room, and more than 10 production lines for various precision filters cartridge. Strict quality control of products, in accordance with international certification standards, At the same time, it is equipped with a well-structured high-level technical R&D and verification team, provide quality products for customers.

Main applications:

Biopharmaceutical, food and beverage, microelectronics, fine chemicals, water treatment, laboratory and other fields; covering LCD panels, semiconductor chips, high-purity chemicals, APIs, water reuse, condensate filtration, water reuse etc.

Pullner laboratory:

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.

Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.

Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.
