40 60 Inches HF High Flow Filter 1/5/10 Micron Depth PP Pleated
Filter Cartridge For Sea Water Desalination
General information

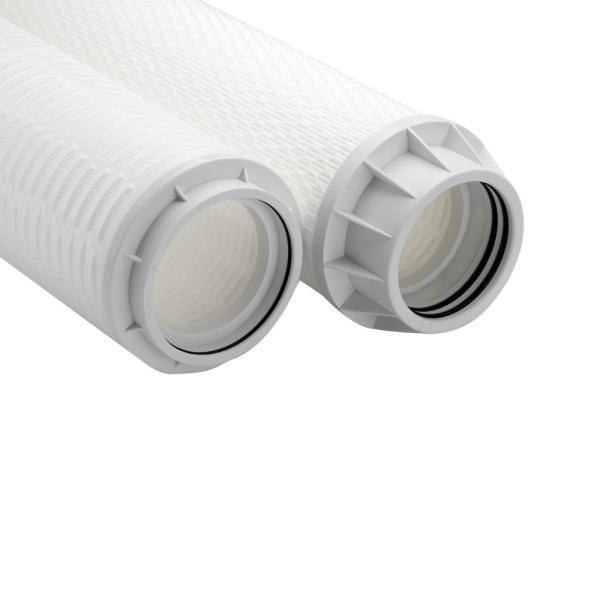

High flow filter cartridge is made of large diameter 6” (152mm),
single open end, coreless, and pleated cartridge with inside to
outside flow pattern. Advance pleat technology, combined with its
large diameter and wide range of micron rating from 1 micron to 200
micron, allows customer to use fewer filters and smaller housing
dimension for high flow rate applications.
Filter installation
Dimensions(nominal)
OD | 6” (152mm) |
Length | 20"(508mm), 40"(1016mm), 60"(1524mm) |
Flow Characteristics:
Length (inches) | Design Flow Rate (m3/hr) | Max. Flow Rate (m3/hr) | Filtration Area (m2) |
| 20" | 15 | 30 | 3.2 |
| 40" | 20 | 60 | 6.5 |
| 60" | 45 | 90 | 9.5
|
Material of Construction:
Model | Filter Media | Support/Drainage | End Caps | Seals Material |
PP | Pleated depth | Polypropylene | Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton
|
PP | Melt blown | / | Glass Fiber Reinforced Polypropylene |
Performance comparison
Comparison chart of specific filter element number and
corresponding filter footprint.
Retention efficiency Table
Scope of particles | Filtration Efficiency |
0.8μm | 1.0μm | 2.0μm | 3.0μm | 5.0μm | 10μm | 20μm |
≥1μm | 99.89% | 99.82% | 95.00% | 86.97% | 79.86% | 42.23% | 24.38% |
≥2μm | 99.97% | 99.87% | 98.64% | 96.84% | 90.09% | 70.49% | 40.09% |
≥5μm | 100.0% | 99.93% | 99.90% | 99.89% | 99.89% | 99.89% | 99.89% |
≥8μm | 100.0% | 100.0% | 99.97% | 99.20% | 98.88% | 95.25% | 82.42% |
≥10μm | 100.0% | 100.0% | 100.0% | 99.58% | 98.39% | 98.18% | 89.42% |
≥12μm | 100.0% | 100.0% | 100.0% | 99.78% | 99.57% | 98.76% | 97.41% |
≥25μm | 100.0% | 100.0% | 100.0% | 100.0% | 100.0% | 99.34% | 99.14% |
Pullner Production process:
Our production strictly follow these procedures: Pleating → Seam
welding → Assembly → Trimming → Welding → Finished products → Packaging
Application:
1. Pharmaceutical industry: Pre-filtration of drugs, distilled
water, biological products, various antibiotics, etc.
2. Electronics industry: Filtration of industrial water such as
electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products,
bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite,
petrochemical, electroplating, mining, machining, industrial water
treatment.
5. Water treatment: Drinking water, commercial water treatment,
desalination
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and
sales of micro membrane filtration equipment and filtration
systems.
Clean Room:
In the purification workshop, workers need to wear purification
clothes, purification shoes, masks, hats and gloves. The
purification workshop has high requirements on the production
environment, which can ensure the cleanliness and safety of the
products, and can meet the filtration requirements of food and
beverage, biopharmaceutical and other industries.
Pullner laboratory:
It is equipped with varieties of test facilities: Aperture
distribution instrument, water single-pass test bench, scanning
electro microscope, bacterial challenge lab, online particle
detector, diaphragm test bench, air permeability tester, filter
cartridge integrity tester, test trolley for simulating field
conditions, etc. With several test experts, quickly provide
customers varies conditions solutions.
Pullner Certificates:
Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates.
Approval vendor of Saudi Aramco.
Global Customers
Pullner Exhibitions:
We have participated in professional exhibitions in the filtration
industry all the year round. At the exhibition, we not only met new
customers and their product needs, but also gained more
understanding of the latest filtration technology and products. For
us to improve existing products and develop new Products provide
more professional information.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter
cartridges, housings and filtration systems. We provide you the
total filtration solutions with our many years experience in the
industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal
orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or
drawings. Our mission is make customer idea on the products and
provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be
customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is
warmly welcomed. If you have a trial order, please feel free to
contact us so that we can make some shipping recommendation for you
to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our
goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15
days for bulk production.
8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.
10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will
recommend you suitable products for your selection also give some
valuable suggestion for your selection.
