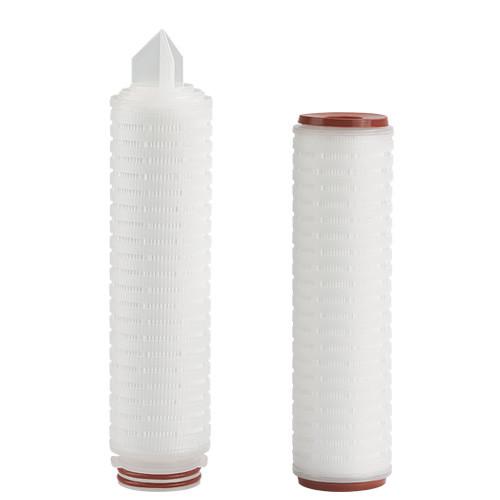

Pleated polyester filter cartridge with 0.3μm/0.5μm/1μm/3μm/5μm
micron in high viscosity working environment
General Description:
Microporous pleated filter element, the main filter material is :
Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether
sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter
element is a kind of deep filtration filter,it is usuaslly used as
liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene
fiber membrane as the filtration medium, low pressure differential,
high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center
pole adopts polypropylene material; It adopts the hot melt welding
process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series
of pore size and form a variety of interface.Material: Pleated
filter, Support layer, End-cover, Inside & Outside cylinder are
polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no
foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental
protection, etc.
Microporous membrane pleated filter cartridge main features: High
interception rate, high liquidity, low pressure differential and a
wide range of chemical compatibility;
The production process adopts unique hot melting process
technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and
other industries production requirements.
Specifications:
| Item | Technical Parameters |
| Micron | 0.3μm,0.5μm,1.0μm,3.0μm,5.0μm |
| Filtration area | 0.4-0.7m² |
| Filter Medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside diameter | 2.7" (68.5mm) |
| Max. operating differential pressure | ΔP≤0.35MPa at 25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at 60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds
50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4.0bar/21℃ |
| 2.4bar/80℃ |
Ordering info:
Series
| Filter Fineness | Length | Connection Type | Seal Material |
PPM
| 0030=0.3μm | 05=5" | C1=226/tripod | E=EPDM |
| PPM |
0050=0.5μm
| 10=10" | C3=222/tripod | S=silicone rubber |
| PPM |
0100=1.0μm
| 20=20" | C5=222/flat head | V=fluororubber |
| PPM |
0300=3.0μm
| 30=30" | C6=226/flat head | P=FEPsleeved |
| PPM |
0500=5.0μm
| 40=40" | C9=the two end | |
Products details:
High-quality raw material with precise designs. Pleated material
combines deep filtration technology and pleated technology to
promising filtration efficiency. Skeleton is using PP material with
hollow-caved design, through testing, it meet the requirements of
working conditions.
Certificate document:

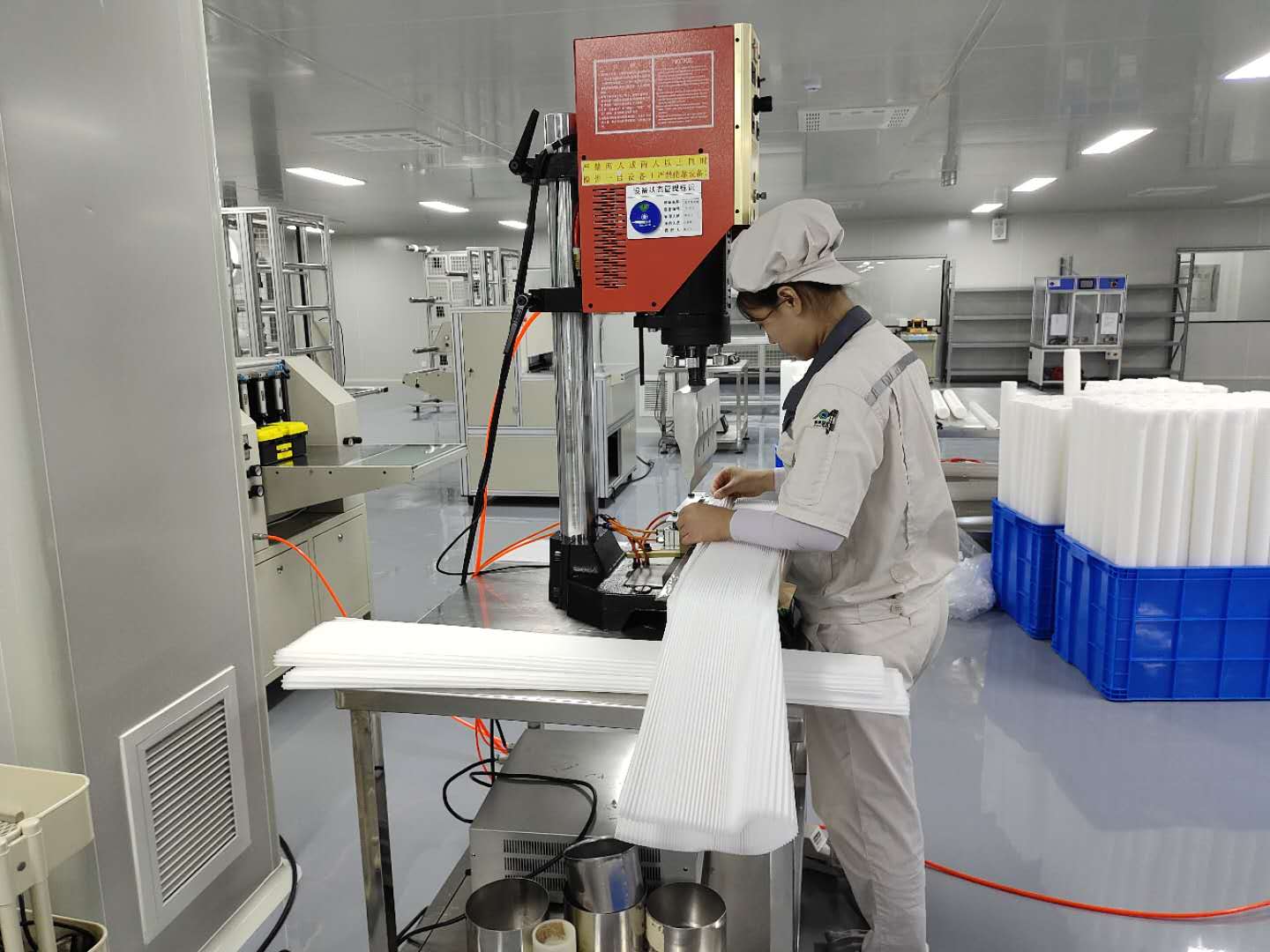

Our Factory:
FAQ
1. MOQ
As manufacturer, 1 piece is acceptable.
2.Payment Term
Flexible payment method. We can accept L/C, T/T, Western Union,
Money Gram, etc.
3.Certification:
We had ISO9001, FDA, certificate, filters test report.
4.Shipping :
Courier service: TNT, DHL, FedEx, UPS, etc.
By sea, by Air, according to customer's request.
5.Sample:
FREE, in 1-3 working days after confirmed.
6. Delivery time:
General 5-10days.
