    10in 2.5 Inch Micro Water Filter PP 5 Micron Filter Cartridge Industry Filtration

    Ask Lasest Price
    Brand Name : PULLNER
    Model Number : PLZ Micro Water Filter
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 1500pcs per week Micro Water Filter
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    10in 2.5 Inch Micro Water Filter PP 5 Micron Filter Cartridge Industry Filtration

    2.5inch Diameter 1Micron 5Micron Industry Filtration 10inch 20inch 30inch 40inch PP Micro Water Filter


    General Description

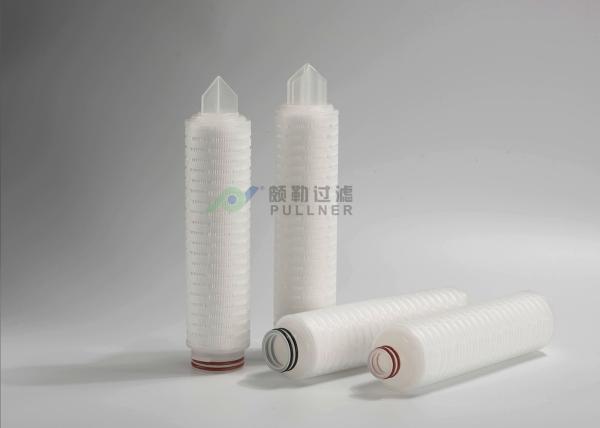

    Pullner PP Micro Water Filter is made of superfine PP(polypropylene) with pleated type, 2.5inch and 2.7inch diameter, length can be 10inch, 20inch, 30inch, 40inch, 50inch, micron rating from 0.1micron to 60micron.


    Specifications of Micro Water Filter

    Item

    Technical Parameters

    Micron

    0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um

    Filtration area

    0.4-0.7m²

    Outside diameter

    2.7inch (68.5mm)

    Max. operating differential pressure

    ΔP≤0.35MPa at25℃

    Max. operating differential pressure (reverse direction)

    ΔP≤0.28MPa at60℃

    Max. operating temperature

    80℃(Stainless steel support is recommended for temperature exceeds 50℃)

    Sterilization temperature

    30 minute cycles @121℃

    Flow rate

    1.2m³/h/10"


    Material structure

    Filter medium

    Polypropylene (PP)

    Support/Drainage

    Polypropylene (PP)

    Core/Cage/End Cap

    Polypropylene (PP)

    O-ring & gaskets seals

    NBR, Silicone, EPDM, Viton


    Performance

    Max. operating temperature

    80℃

    Max. operating pressure

    4bar/21℃

    2.4bar/80℃

    Mosit-heat sterilization

    121℃/30min

    Hot water sterilization

    85℃/30min


    Applications:

    1. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc

    2. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.

    3. Water treatment: Drinking water, commercial water treatment, desalination


    Features and Benefits:

    * Absolute rating, bubble point test compliance with GMP certification;

    * Strict quality control system, complete production process flow;

    * Short delivery period, general 7 days;

    * Flexible payment method: T/T, L/C, West Union, Paypal;

    * Free technical support;




    1. Q: Are you a trading company or a manufacturer?

    A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.

    2. Q: May I have samples?
    A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
    3. Q: Can you make customized products?
    A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
