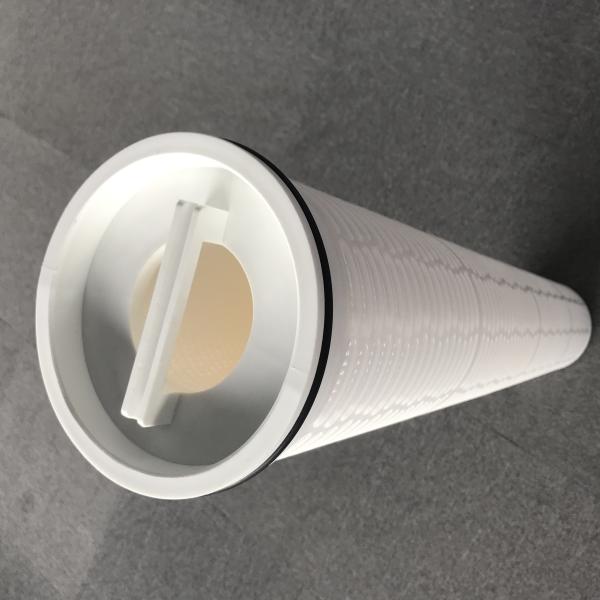

10 Micron Filter Cartridge Long Service Life 1 Micron PP Filter
Media High Flow Pleated PP Water
Products Details
Performance Specifications
| Micron | 1um, 5um, 10um, 15um , 20um, 40um, 70um, 100um |
| OD | 6" (152mm) |
| Length | 20"(508mm), 40"(1016mm), 60"(1524mm) |
| Max. operating temperature: | 82℃ |
Max. operating differential pressure (Inside to outside flow direction) | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 20": 35m3/h |
| 40": 70m3/h |
| 60": 110m3/h |
| Flow Direction | Inside to outside |
| Model | Filter Medium | Support/Drainage | End Caps | Seals Material |
| PP | Pleated depth | Polypropylene | Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton |
| PP | Melt blown | / | Glass Fiber Reinforced Polypropylene |
Operating Demonstration
It easy to operating, all you need to do just to put the filter in
the strainer. We provide online installation guide.
Application:
1. Water treatment: Drinking water, commercial water treatment,
desalination.
2. Food and beverage: Beer, wine, soft drinks, dairy products,
bottled water, fruit wine, juice, syrup, cooking oil, etc
3. Industrial filtration: Power plant, Energy, coatings, graphite,
petrochemical, electroplating, mining, machining, industrial water
treatment.
Features and Benefits:
* 40'' outer cage is one piece, with high strength can withstand
one adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination
catched;
* Gradient aperture deep polypropylene fiber filter media, aperture
along the fluid motion direction becomes smaller, levels intercept
different sizes particles, which has excellent dirt holding
capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers
save the labor cost;
* Integral support, high strength, high dirt holding capacity, long
service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* FREE sample.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter
cartridges, housings and filtration systems. We provide you the
total filtration solutions with our many years experience in the
industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal
orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or
drawings. Our mission is make customer idea on the products and
provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be
customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is
warmly welcomed. If you have a trial order, please feel free to
contact us so that we can make some shipping recommendation for you
to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our
goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 10~15
days for bulk production.
8. Q: How should I pay you?
A: T/T, L/C, Western Union, MoneyGram, etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14001/ISO45001 certified.
10. Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will
recommend you suitable products for your selection also give some
valuable suggestion for your selection.
