5Micron High Flow Filter Element For Electronics industry and Sea
Water Desalination

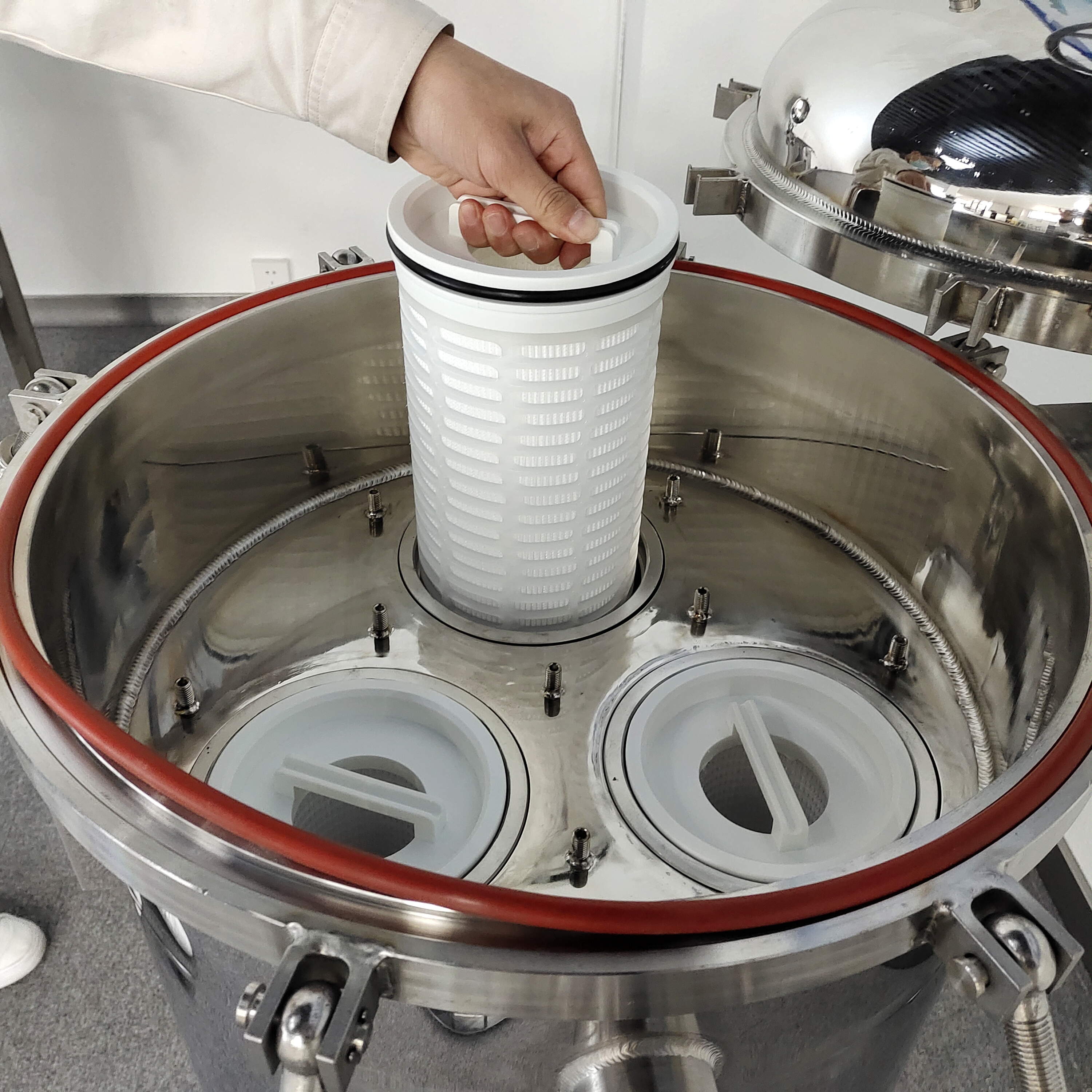

High flow filter cartridge is made of large diameter 6” (152.4mm),
single open end, coreless, and pleated cartridge with inside to
outside flow pattern. It has economical design, more cost
advantage. The filter has good structure which has high dirt
holding capacity, resulting in long service life. Much micron
ratings and lengths for choosing Micron ratings from 0.1um to
100um, and lengths from 20" to 60", which can meet all kinds of
requirements.
| Flow Characteristics: | | | |
| Length(inches) | Design Flow Rate(m3/hr) | Max. Flow Rate(m3/hr) | Filtration Area(m2) |
| 20" | 15 | 30 | 3.2 |
| 40" | 20 | 60 | 6.5 |
| 60" | 45 | 90 | 9.5 |
|
| Specification | 列1 | 列2 | 列3 | | Filter Media | PP | Retention Rating | 1um, 5um, 10um, 20um, 50um, 70um, 100um. others size available | | Support/Drainage | PP | Seals Material | NBR, Silicone, EPDM, Viton | | Core/End caps | PP | Recommend Change-Out Differential Pressure | 2.1 Bar @ 20℃ | | O-ring/Gasket | Silicone, EPDM, Viton | Maximum Operating Temperature | 82℃ (PP) | | Outer Diameter | 6" (152.4mm) | End Caps | Glass Fiber Reinforced Polypropylene |
|
Comparison chart of specific filter element number and
corresponding filter footprint.
Mainly engaged in:
* Food and Beverage Industry
* Seawater Desalination
* Process Water and Waste Water Treatment and Industrial Water
* Cooling Water and RO Pre-filtration
Our production strictly with these procedures:
Pleating → Seam welding → Assembly → Trimming → Welding → Finished
products → Packaging.
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and
sales of micro membrane filtration equipment and filtration
systems.
Established in May 2011, with a registered capital of 26 million
yuan, We has a 100,000-level purification workshop of 3,000 m² and
a local thousand-level purification laboratory. It is a research
and development, production and sales of micro membrane filtration
equipment, filtration system in one of the well-known enterprises.
Our products are mainly engaged in:
※Microelectronics, Fine chemicals, New energy industry, Sea water
desalination, Biotechnology, and other fields.
※Covering High-purity chemicals, Liquid crystal panels,
Semiconductor chips , Raw materials, Condensate filtration,
Reclaimed water reuse more than a dozen industries.
Our workshop is divided into standard workshop and microelectronics
clean workshop, all workers entering the workshop to wear purification clothes, purification shoes, masks, hats and gloves.
We can ensure the cleanliness and safety of our products, and
definitely can meet the filtration requirements of food and
beverage, biopharmaceutical and other industries.
It is equipped with varieties of test facilities: Aperture
distribution instrument, water single-pass test bench, scanning
electro microscope, bacterial challenge lab, online particle
detector, diaphragm test bench, air permeability tester, filter
cartridge integrity tester, test trolley for simulating field
conditions, etc. With several test experts, quickly provide
customers varies conditions solutions.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
